Gas Sampling System Draeger SAM 3100 | 3200
Dräger Gas Sampling Solutions
Dräger specialises in the engineering of individual gas sampling solutions for a wide range of different applications. In certain applications, the use of conventional gas detector and sensors may be limited. This may be caused by the environment in which the device needs to be place, the cable routing or even access restrictions. There may also be significant cost implications with installation of these devices.

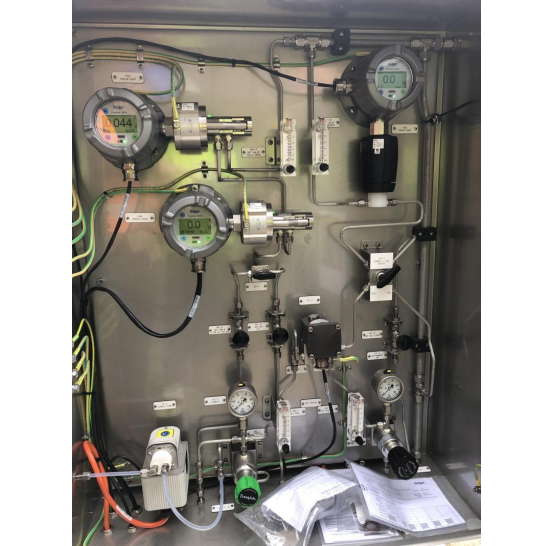

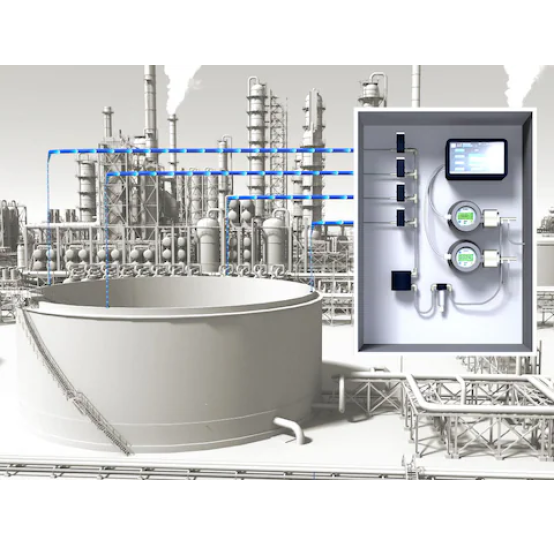

Gas sampling solutions, or aspirated gas detection system, operate by drawing a gas sample from the desired detection point to a remotely located detector. Typically, the sample is drawn through tubing and some kind of pump is used to move the sample gas stream.
There are typically four main component of a gas sampling system; Sampling, Transport, Measuring and Data Monitoring.
-
Contact us
-
42
Benefits
Easy installation
All electrical connections lead directly to the components, and cables can be routed individually to suit thesituation in hand. High quality compression fittings on the mounting plate make it quick and easy to connect the sample gas or air extraction line.
Straightforward one-man assembly
The sampling system comes fully assembled, and the plate can be attached in just a few simple steps by on person. Predrilled holes for fixing screws make easy work of wall-mounting and customer- specific assembly. The sample gas tubes can be installed quickly and easily without the need for screwdrivers.
Variable sampling concepts

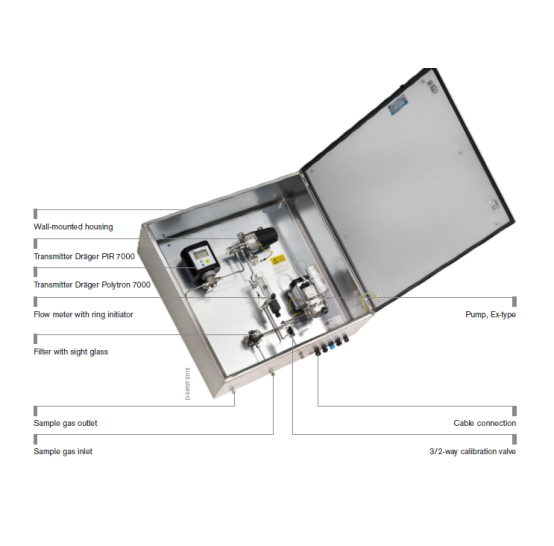

The Dräger SAM 3100 and Dräger SAM 3200 units come equipped as standard with a non-explosion-proof sampling pump. From the same series, an explosion-proof pump can be chosen as an option. If process air isavailable, another alternative is to use a wear-free – and therefore maintenance-free – injector with pressure regulator. The gas flow to be measured is reliably monitored via the ring initiator with integrated connection
